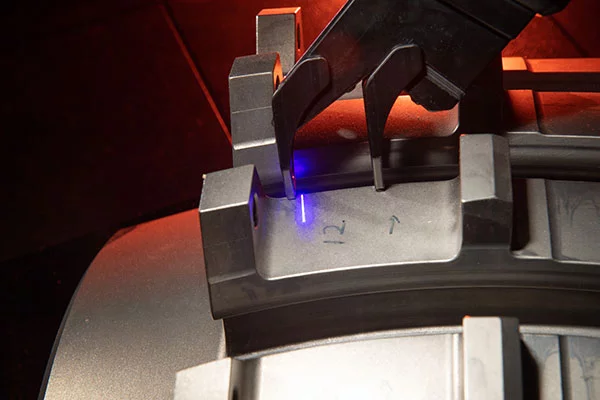

Our lightweight, fast, accurate sensors coupled with leading edge technology is perfectly suited for taking accurate measurements on a wide range of flat or curved surfaces such as glossy painted or dull green primed, stainless steel, anodized titanium, highly polished aluminum, composite and many others.

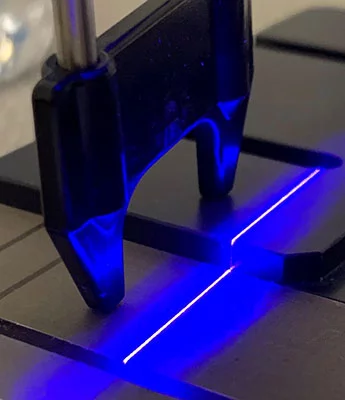

There are few options for measuring step heights between separated, nominally plane-parallel surface regions of a precision-engineered part. Obstacles to overcome are surface textures as well as accurately representing two surface profiles. Using a mechanical device will show the height of the surface may increase significantly with the tip radius in a manner that biases step height measurements on uneven surfaces.
The LaserGauge® Step algorithm automatically measures the step height between two surfaces and the peaking angle between the surfaces. The determining factor becomes other uses for the sensor and field of view requirements. All sensors come with standoffs for Gap/Flush. The TS800 comes with the proper straddle standoff but is a separate accessory for the HS702 or HS703 for measuring step.

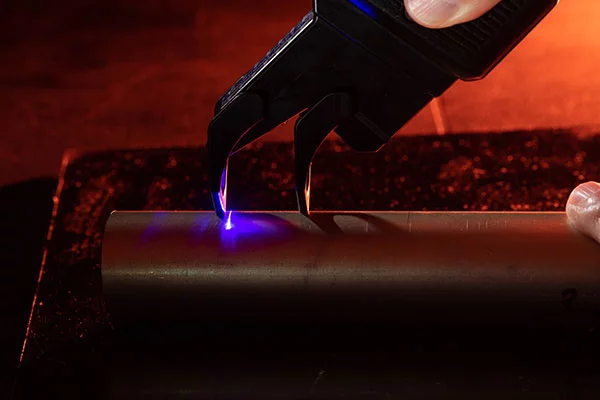

Critical components in aircraft and space vehicles can be damaged by foreign objects during repair processes or by unexpected wear during normal operation. Any material removed from a surface by a scratch or a gouge or any deformity of a surface, such as a dent, may compromise the safety of the vehicle.
Scratches and gouges on tubes, pipes and other surfaces must be measured to determine how much material has been removed, and thus, how much of the original surface or wall is remaining. Depth micrometers and other mechanical devices cannot provide meaningful measurements because of the contour of the surfaces and the small features that have to be measured. The depth and width of any visible wear or gouge must be measured to determine if the part is still qualified for flight. Thresholds for the amount of material that can be missing are in the thousandths of an inch, so the measurement instrument must achieve this resolution.

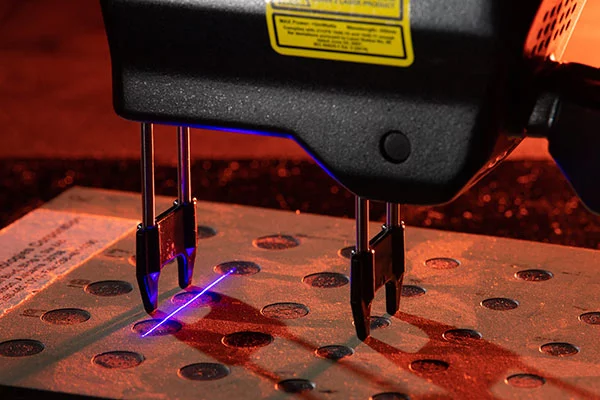

Fasteners on the exterior of aircraft must be flush to the surface within a certain tolerance. A fastener that protrudes above or one that is driven below the adjacent surface may adversely affect performance in flight.
Mechanical devices measure the height at one single point on the fastener head and an operator must position the stylus many times on one fastener just to find the highest point. This can be a very time-consuming process. 3D mapping of the surfaces is not feasible; it requires expensive equipment, is very time-consuming and the equipment is not practical to use on the flight line.
The height and depth of the fastener relative to the surrounding surface must be measured to within thousandths of an inch. Fasteners that measure outside the tolerance range for height or depth must be identified immediately. The read-out must flag any out-of-spec conditions so the operator can mark the fastener or take corrective action.
Depending on the diameter of the fastener and the resolution required, an HS702 sensor with either a 1.2" or 1.9" field-of-view is recommended. This DSP sensor displays the profile of the fastener head in real-time on the LCD so that the operator can make sure that the sensor is positioned correctly over the fastener. Measurements are automatic. The operator positions the laser stripe over the fastener and releases the trigger. The edges of the fastener are identified, and the height and/or depth are calculated for both the fastener's left edge and right edge relative to a surface line-fit.

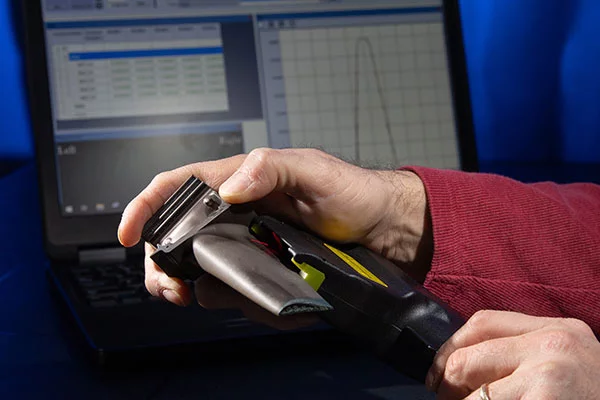

The leading edge of a vane or blade used in aircraft or power system engines must maintain its designed contour within an acceptable range for safe and efficient operation of the engine. Measurements that are critical include the edge radius and the width or thickness of the blade at varying distances away from the edge.
Previously, the only reliable method of inspecting the blade was to use a coordinate measurement machine (CMM). However, this process is very time-consuming and requires each part to be transported to a central location for inspection.

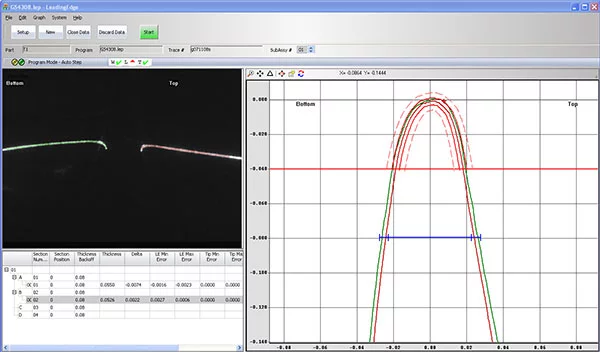

The leading edge inspection algorithm utilizes engineering data to configure a template and match the part to the template at multiple locations. The leading edge is accurately scanned to ± 0.0005” and compared to the template to determine if the contour falls within the acceptable range. All out-of-spec conditions are noted graphically and numerically to the display.

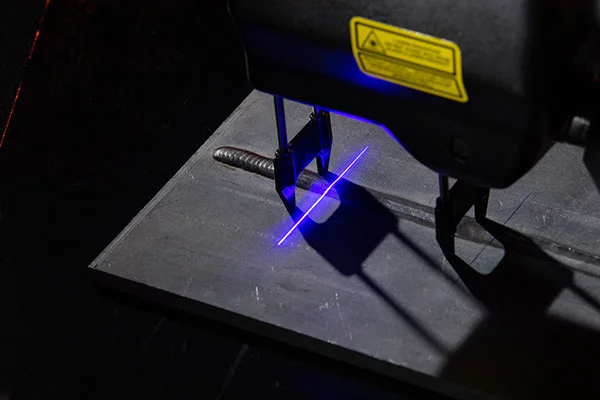

Potential weaknesses in a weld can be revealed in the evaluation of its surface characteristics. The height, width and area of a butt weld are factors in its strength. Also, the fit-up and angle of the panels welded together have a bearing on the integrity of the weld.
Inspection of welds on space vehicles during production and after repair is mandatory. Ultrasonic techniques are used to locate subsurface cracks in the welds; however, the surface features must be inspected using other methods. Operators are able to visually isolate areas of concern on the weld, but they are unable to measure the features with mechanical tools accurately or repeatably.
Tolerances for weld width, height and surface area are expressed in thousandths of an inch. If the weld bead is below the adjacent panel surfaces, it is said to be concave, and the concavity must be measured. The fit of the panels before welding, meaning whether there is difference in the surface heights of the panels and whether the panels are at an angle to each other, also determines the integrity of the weld and must be inspected.

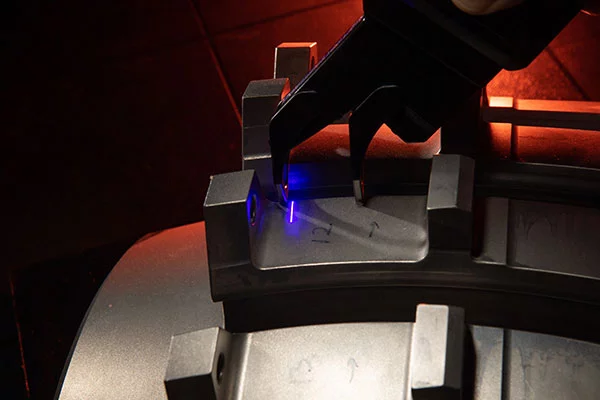

Pitting on a jet engine turbine blade requires repair once it exceeds a depth threshold. If the pitting is too severe, the blade cannot be repaired and has to be scrapped. Identifying blades that are eligible for repair saves significant costs for the airlines. Attempts have been made to visually inspect the blades and determine the depth by comparing the pitting coloration to examples or templates. Visual measurements are not always repeatable because of the different individual capabilities of the inspectors. Optical comparators have also been used, but these machines lack the portability desired.
The depth of pitting must be measured and documented to qualify a blade for repair. Thresholds for repair and scrap are in the thousandths of an inch, so the measurement instrument must achieve this resolution.
The measurement of corrosion presents a similar problem to pitting. The severity or depth of corrosion on critical parts such as gears must be measured to determine if repair or replacement is warranted.

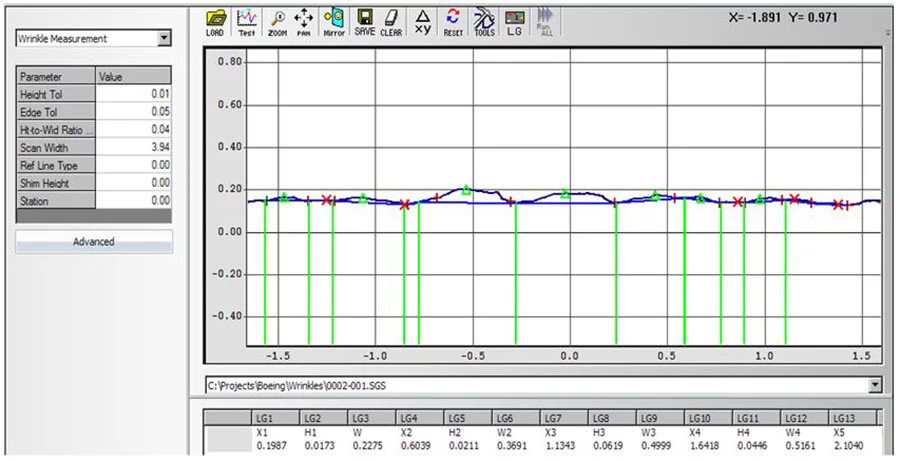

Surface roughness, texture or wrinkles plays an important role in determining how a real object will interact with its environment. Rough surfaces usually wear more quickly and have higher friction coefficients than smooth surfaces. Wrinkles or texture may affect matchup on mating components. Similarly, roughness may promote adhesion and is desirable in some instances if controllable.
Roughness can be measured manually by a visual comparison vs. a known surface roughness or a physical inspection using touch, or a 'scribe' method. Data recording and repeatability between inspectors or shops are often challenges in this scenario. The measurements must provide height and depth of the largest peak and valley, relative to a reference line
